Capabilities · Hereford drawing office · established 2002
Models, drawings and NC data for steel fabricators across the UK and Ireland, from a Hereford drawing office established in 2002.
Additional Tekla capacity when your drawing office needs support, or complete steel detailing for whole projects.
Additional Tekla capacity when your drawing office is full, while you are recruiting, or when several projects arrive at the same time.
We work in the version you run, in your template or ours. Take one package off your team, or a whole job.
A full modelling and detailing service, from the engineer's drawings to the issued package.
We take on whole jobs, modelled and detailed in full in Tekla. The model is built the way your shop wants it.
Portal sheds for industrial, retail and agricultural buildings.
Multi-storey hot-rolled frames of columns and beams.
Floors and platforms inside existing buildings, turned round quickly.
Extensions, added storeys and new steel into buildings already standing.
Including railway footbridges with lift shafts, and link bridges.
Exposed steelwork and one-off houses, where the steel is on show.
Offices and commercial units
Sheds, factories and warehouses
Supermarkets and retail parks
Schools and universities
Venues, halls and sports buildings
Hospitals
Hotels and hospitality
Power stations
Farm buildings
One-off houses and flats
| No. | Code | Item | Notes |
|---|---|---|---|
| 01 | IFC | IFC models | Any shop can use them. |
| 02 | GA | General arrangements | GA drawings for the job. |
| 03 | FAB | Fabrication drawings | Assemblies and parts for the shop. |
| 04 | ERE | Erection drawings | Drawn with the site sequence in mind. |
| 05 | SW | Site-works drawings | Where the job needs them. |
| 06 | NC | NC data | For hot-rolled steel, straight to the machines. |
| 07 | CR | Cold-rolled package | Sheeting rails and other secondary steel. |
| 08 | MS | Material schedules | And bolt lists. |
The engineer's drawings for the job.
We come back with a price and the dates.
Your order, and the connection loads as early as you have them.
Usually within a week, sooner when there is room.
As we start
Before the model starts, we ring your drawing office or project lead and ask how you want it built.
First couple of days
RFIs go out in the first couple of days, so revisions are few.
Through the job
Affected marks go on hold. Small changes are reissued the same day.
Steelwork we have detailed.

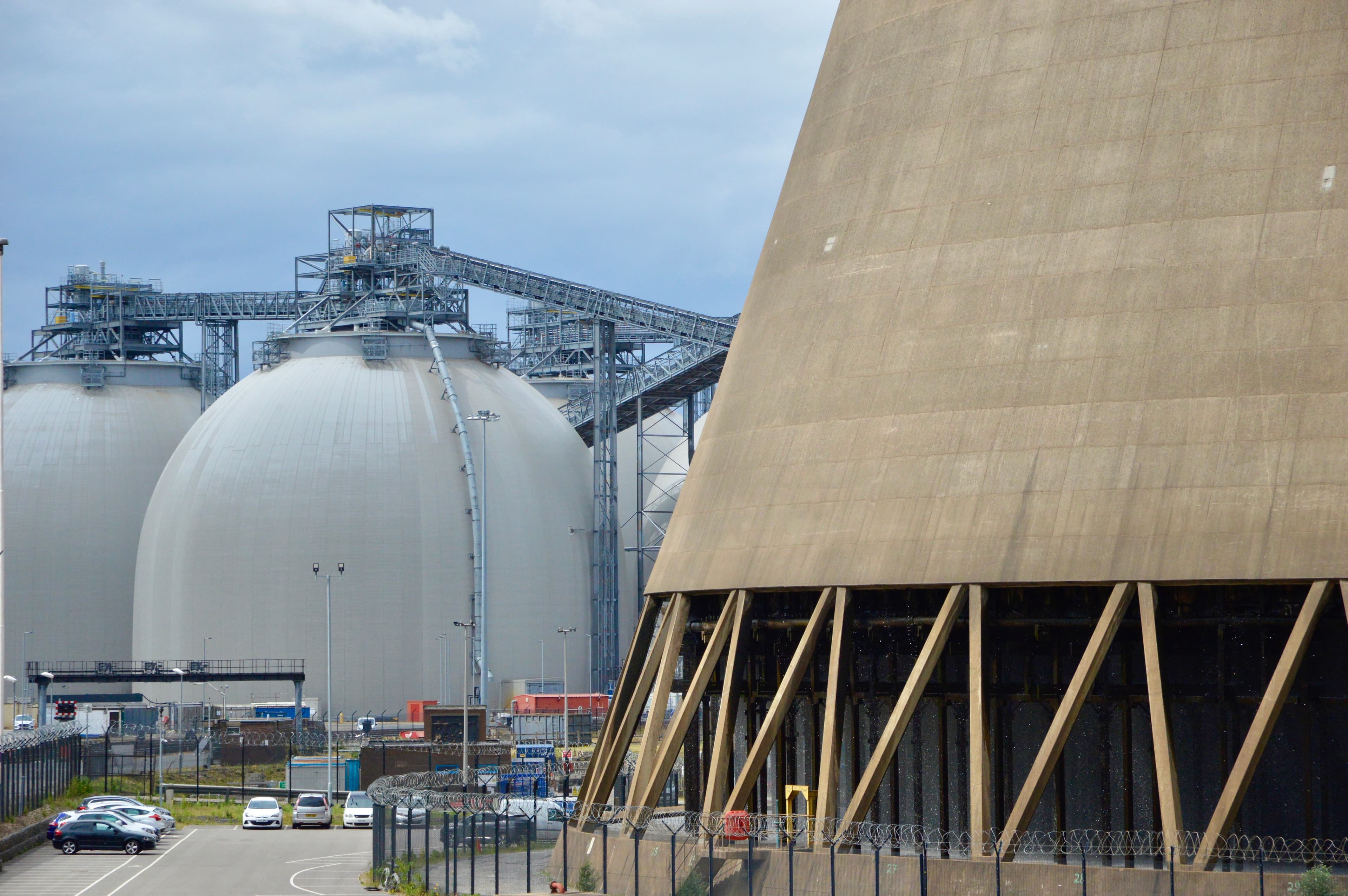

Biomass conveyor system and supporting gantries and platforms, for the largest power station in Europe at the time.
3D modelTotal refurbishment of a Victorian feature building, with exposed steelwork in the main hall carrying the balconies.
3D modelAward-winning clifftop private residence in weathering steel.
“After several years of working together, IBPS have rightfully become the 'go to' external drawing resource for FH Dale and we continue to be impressed with the level of professionalism they display.”
“I've worked with IBPS since 2012. They've helped us with various intricate & complex new build and refurb projects, where they always show the highest level of attention to detail. On top of that, Ian and the team have great working ethics and always bring a friendly disposition, making them a pleasure to work with. I would highly recommend IBPS to anyone.”
“We have worked with IBPS for around 20 years now. … The whole team are very professional, phone calls are always answered, any queries are raised in a timely manner. … We never hesitate to work alongside IBPS.”
Send the engineer's drawings and we will come back with a price and programme.
Would it be worth a 10-minute call to see whether we could provide extra capacity when your drawing office is full?
01432 272372Monday to Thursday, 8:30am to 5pm. Friday, 8:30am to 4pm
The full document as a PDF, for your files or to pass round the office.
